技術參數

列印方法

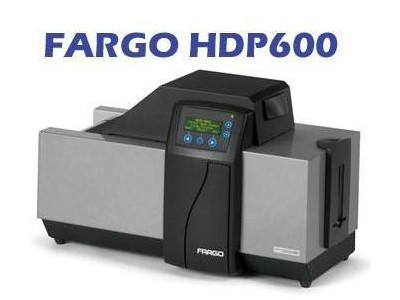

HDP 染色升華/樹脂熱轉印

解析度

300DPI

色彩

高達1670萬種或256色/像素

列印色帶選擇

全色帶(Y,M,C)* 全色帶 + 黑色（Y,M,C,K） * 全色帶 + 2黑色（Y,M,C,K,K）*

打印速度

44秒/張

卡片尺寸

CR-80 (3.375"L*2.125"W/8506mmL*54mmW)

打印區域

Over-the-edge on CR-80 cards

打印尺寸

標準的CR-80卡卡尺寸：3.375"L*2.125"W/85.6mmL*54mmw

字體

true type fonts()

卡的厚度

Print only:.030"(30mil)to .070(70mil)/.762mm to 1.778mm
Print/Lamination:.030"(30mil)to .040"(40mil)/.762mmto1.02mm

卡片類型

ABS ,PVC ,PET ,PETG ,proximity,smart and mag stripe cards,optical memory cards

進卡槽容量

200 cards(.030"/.762mm)

出卡槽容量

100 cards(.030"/.762mm)

內存

8MB RAM

軟件驅動

Windows 2000/XP

編碼選項

ISO Magnetic stripe Encoding Module,dual high-and low-coercivity, tracks1,2,and 3;JIS II Magnetic Stripe Encoding Module;E-Card Docking station(required for all e-card options or 3rd party smart Card Encoder(HID iCLASS and MIFARE); Contact Smart Card Encoder reads from and Writes to all ISO7816-1/2/3/4 memory and microprocessor smart cards(T=0,T=1)as well as synchronous cards; Prox Card Encoder (HID read-only)

系統要求

IBM-PC or compatible, windows 2000/XP, Pentium class 133MHZ computer with 32MB of RAM or higher,200MB free hard disk space or higher and available USB port

接口

USB1.1(兼容USB2.0)

運轉溫度

65°to 80°F/18°to 27°C

濕度

20- 80 % non-condensing

電壓

100-240 VAC , 4.25A

頻率

50/60 Hz

熒屏

用戶界面友好，4行LCD顯示

重量

17.7KG

其它選項

32MB RAM Upgrade Kit; Print cleaning Kit ;Exteral Print Server(Windows only;required for stand-alone networking of printer/encoders); Card Laminatio Module; Card Encoding Module
